Step 2 · Break and Remove the Old Cast Iron Flange

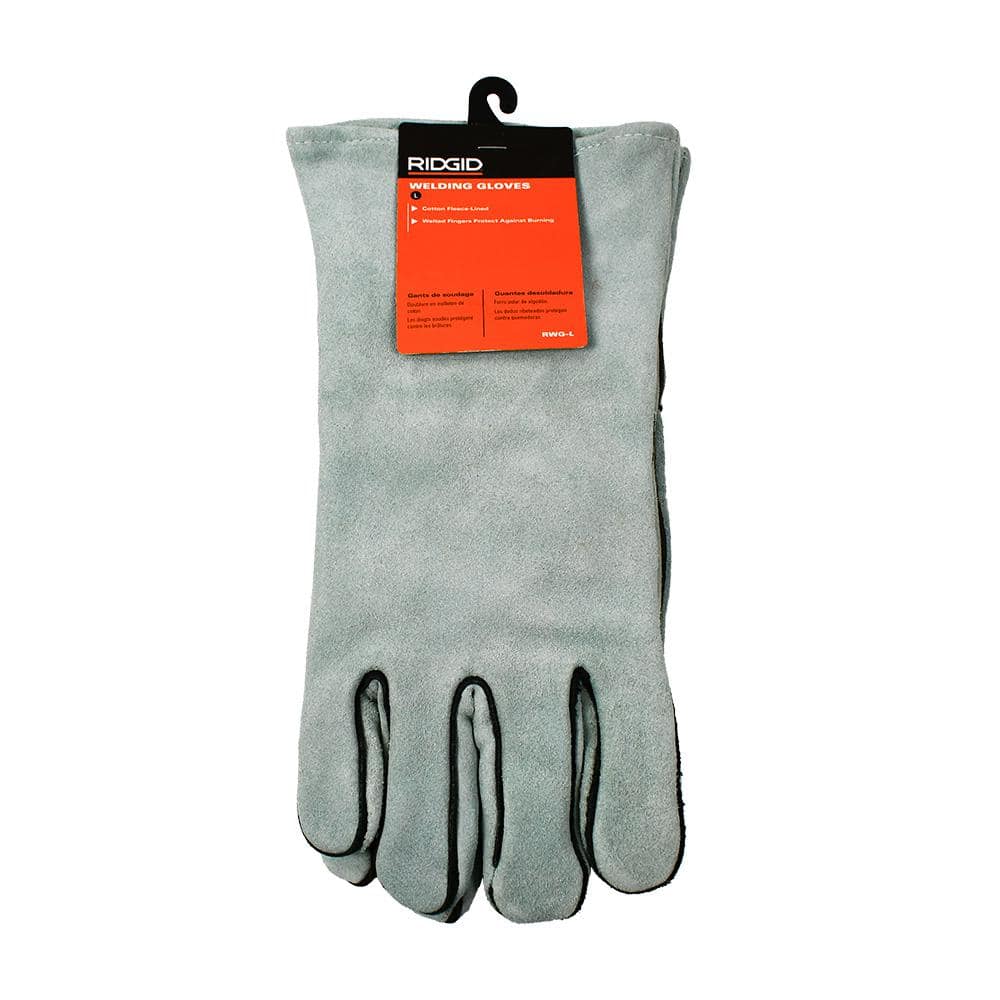

WEAR SAFETY GLASSES AND HEAVY-DUTY GLOVES. First, stuff a large rag into the drain pipe opening to block sewer gas and prevent debris from falling down. Using a cold chisel and a hammer (or small sledgehammer), carefully begin to break the cast iron flange ring. Place the chisel on the top of the flange ring and strike it firmly. Work your way around the ring, creating fractures. Avoid striking the central drain pipe. Once the ring is sufficiently fractured, use a pry bar to lift the broken pieces away. You may need to chip away at the lead and dig out the oakum rope that forms the seal between the flange and the pipe.

Stesso
BrowseMy Projects
Sign in

Step 2 · Break and Remove the Old Cast Iron Flange

WEAR SAFETY GLASSES AND HEAVY-DUTY GLOVES. First, stuff a large rag into the drain pipe opening to block sewer gas and prevent debris from falling down. Using a cold chisel and a hammer (or small sledgehammer), carefully begin to break the cast iron flange ring. Place the chisel on the top of the flange ring and strike it firmly. Work your way around the ring, creating fractures. Avoid striking the central drain pipe. Once the ring is sufficiently fractured, use a pry bar to lift the broken pieces away. You may need to chip away at the lead and dig out the oakum rope that forms the seal between the flange and the pipe.

Tools and Materials

← Project

How to Replace a Cast Iron Toilet Flange with PVC

Step 2 of 6·1.9 hr left

Prepare Workspace and Remove Toilet
30 mins6 itemsIntermediate
2
Break and Remove the Old Cast Iron Flange
1 min6 items
3
Clean and Prepare Drain Pipe
20 mins5 itemsAdvanced
4
Cut Drain Pipe to Correct Height
30 mins9 items
5
Dry Fit and Install PVC Flange Assembly
30 mins8 itemsAdvanced
6
Reinstall the Toilet
30 mins5 itemsIntermediate
